Understanding the Cartoning Challenge for Stick Pack and Sachet Healthcare Products

Healthcare manufacturers that package products in stick pack and sachet formats face a distinct set of operational pressures. Pharmaceutical, chemical, electronics, and food producers working with blister packs, bottles, tubes, ointments, and sachets commonly encounter three recurring pain points: manual cartoning labor costs, quality risks from missed or misplaced products and leaflets, and the need for continuous-line coordination with upstream and downstream packaging equipment. These issues are not isolated to one industry—they surface wherever small and medium production volumes require GMP-compliant, high-accuracy cartoning.

Guangdong Rich Packing Machinery Co., Ltd., operating under the brand Rich Packing, has built its positioning around solving exactly this cluster of problems. As a manufacturer of automatic cartoning machinery, the company combines optical, electronic, pneumatic, and mechanical technologies into a single platform designed to raise automation levels and reduce dependence on manual labor.

Why Stick Pack and Sachet Cartoning Requires Purpose-Built Equipment

Sachet-style products—common in chemical formulations, food products, and pharmaceutical presentations—present handling challenges that differ from rigid bottles or blister trays. Flexible packaging shapes are more prone to misalignment during insertion, and leaflet or insert placement becomes harder to verify visually at speed. This is precisely where dual inspection and precise feeding mechanisms become relevant to healthcare-adjacent production lines.

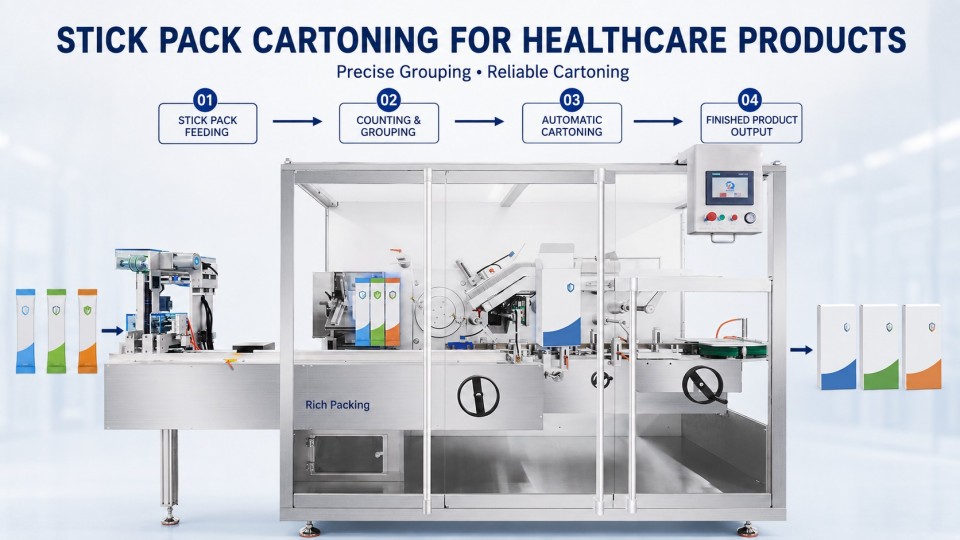

The RQ-ZH-120L Automatic Cartoning Machine

Rich Packing’s core offering is the RQ-ZH-120L Automatic Cartoning Machine, a fully automatic, high-speed vertical cartoning system built for pharmaceutical, chemical, electronics, and food production environments. It is specifically positioned for small and medium output volumes and GMP-compliant environments, making it relevant for healthcare product manufacturers that need reliable, regulation-conscious equipment without the footprint or complexity of large-scale production lines.

One Machine, Multiple Product Formats

A defining characteristic of the RQ-ZH-120L is its ability to handle diverse product formats and specifications within a single machine. The complete process—feeding, carton forming, conveying, leaflet folding, inspection, product insertion, batch printing, tongue closing, carton sealing, and missing-product rejection—is consolidated into one automated sequence. For manufacturers packaging sachets, tubes, ointments, or blister packs, this consolidation directly addresses the labor-cost pain point associated with manual cartoning.

Speed and Stability Through Dual Servo Feeding

The machine’s feeding system uses dual servo motors, which the company states achieve up to 125 cartons per minute with faster and more stable performance than a comparable one-servo-motor configuration. The rated speed range spans 35 to 125 cartons per minute, giving manufacturers flexibility to match line speed to actual production demand rather than running at a single fixed rate.

Dual Inspection for Healthcare-Grade Accuracy

Quality risk from missed or misplaced products and leaflets is addressed through a dual inspection methodology: products and leaflets are verified before insertion, and again once inside the carton. This two-stage check is designed to detect incorrect quantities and improper carton placement, which is particularly relevant for healthcare products where an omitted leaflet or an incorrect count carries regulatory and safety implications.

Supporting this inspection approach, the machine incorporates dense station-level monitoring at leaflet feeding, leaflet counting, product loading, product counting, and carton positioning. Fault data and counting information are fully visualized and viewable on the touch screen at any time, which the company positions as easier for maintenance teams to review both the process and the final result.

Built for Continuous Operation

The RQ-ZH-120L is described as delivering highly stable operation suitable for continuous 24-hour production. A dual clutch design activates bidirectional protection when the main motor is overloaded or the leaflet folder faults, protecting both the equipment and the operator. All components are clearly numbered, which supports routine maintenance without requiring extensive technical documentation lookup.

Construction and Compliance

Corrosion resistance and longevity are supported through stainless steel or nickel chrome plating construction with stable chemical properties, offering non-toxicity and safety—both relevant considerations for pharmaceutical and food-adjacent environments. Welded areas receive tempering treatment to extend service life. The RQ-ZH-120L is stated to meet GMP compliance, reinforcing its suitability for regulated healthcare production settings.

Technical Specifications

For manufacturers evaluating fit against existing production requirements, the RQ-ZH-120L’s documented parameters include:

• Speed: 35–125 cartons per minute
• Total power: 1.10 kW
• Power supply: 220V/380V, 50Hz
• Air pressure requirement: ≥0.6 MPa; air consumption: 120–160 L/min
• Machine dimensions: 2,150mm × 1,140mm × 1,800mm
• Net weight: approximately 1,500 kg
• Carton size range: Length 65–150mm; Width 35–85mm; Height 12–45mm; carton weight 240–360g/㎡
• Leaflet size range: Length 78–250mm; Width 85–170mm; 1–4 folds; weight 60–70 g/m²

The company also notes the machine occupies approximately 3㎡, which it presents as easing transport and installation within existing facility layouts.

Component Quality

The configuration list includes internationally sourced components such as Panasonic servo motors and drivers (Japan), an SEW main motor (Germany), a Danfoss frequency converter (Denmark), a Siemens PLC (Germany), Omron sensing and switching components (Japan), SMC pneumatic valves and generators (Japan), and a Schneider emergency stop button (France), among others. The company states that using established electrical component brands such as Baker and Siemens helps ensure reliable quality across the machine’s operating life.

Integration Into Existing Production Lines

Continuous-line coordination is a stated pain point for many packaging operations, and Rich Packing addresses this through platform compatibility. The RQ-ZH-120L can integrate with end sealers, blister packing machines, counting and bottling lines, cellophane overwrapping machines, strapping machines, and other cartoning machines, according to production requirements. This allows manufacturers to connect the cartoning stage with upstream filling or blistering operations and downstream sealing or bundling steps, rather than treating cartoning as an isolated manual task.

Industry Applications

The RQ-ZH-120L is positioned across four primary sectors:

• Pharmaceutical: GMP-compliant cartoning for blister packs, bottles, and tubes.
• Chemical: Cartoning of tubes, ointments, and sachets.
• Electronics: Cartoning of electronic cigarettes and related items.
• Food: Cartoning of sachets and comparable packaged products.

For healthcare-adjacent manufacturers working with sachet or stick-pack style presentations, the sachet handling capability documented under chemical and food applications, combined with GMP compliance under pharmaceutical use, indicates a machine designed with format flexibility in mind rather than a single-product solution.

A Practical Path Toward Automated Cartoning

Manufacturers considering automation of their cartoning process are typically weighing labor cost reduction against inspection accuracy and line integration capability. Guangdong Rich Packing Machinery Co., Ltd. structures the RQ-ZH-120L around all three considerations simultaneously: automated multi-step processing to reduce manual handling, dual inspection to address quality risk from missed or misplaced products and leaflets, and platform compatibility to support coordinated, continuous production. For small and medium volume operations in pharmaceutical, chemical, electronics, and food packaging, these documented capabilities offer a structured basis for evaluating whether automated cartoning aligns with current production needs.

Additional technical detail, including full configuration lists and dimensional specifications, is available directly through Rich Packing’s corporate channels for manufacturers conducting due diligence on equipment selection.
